High Voltage Battery Replacement, Vehicle wont start.

Parker · 2022-02-03 18:27:32

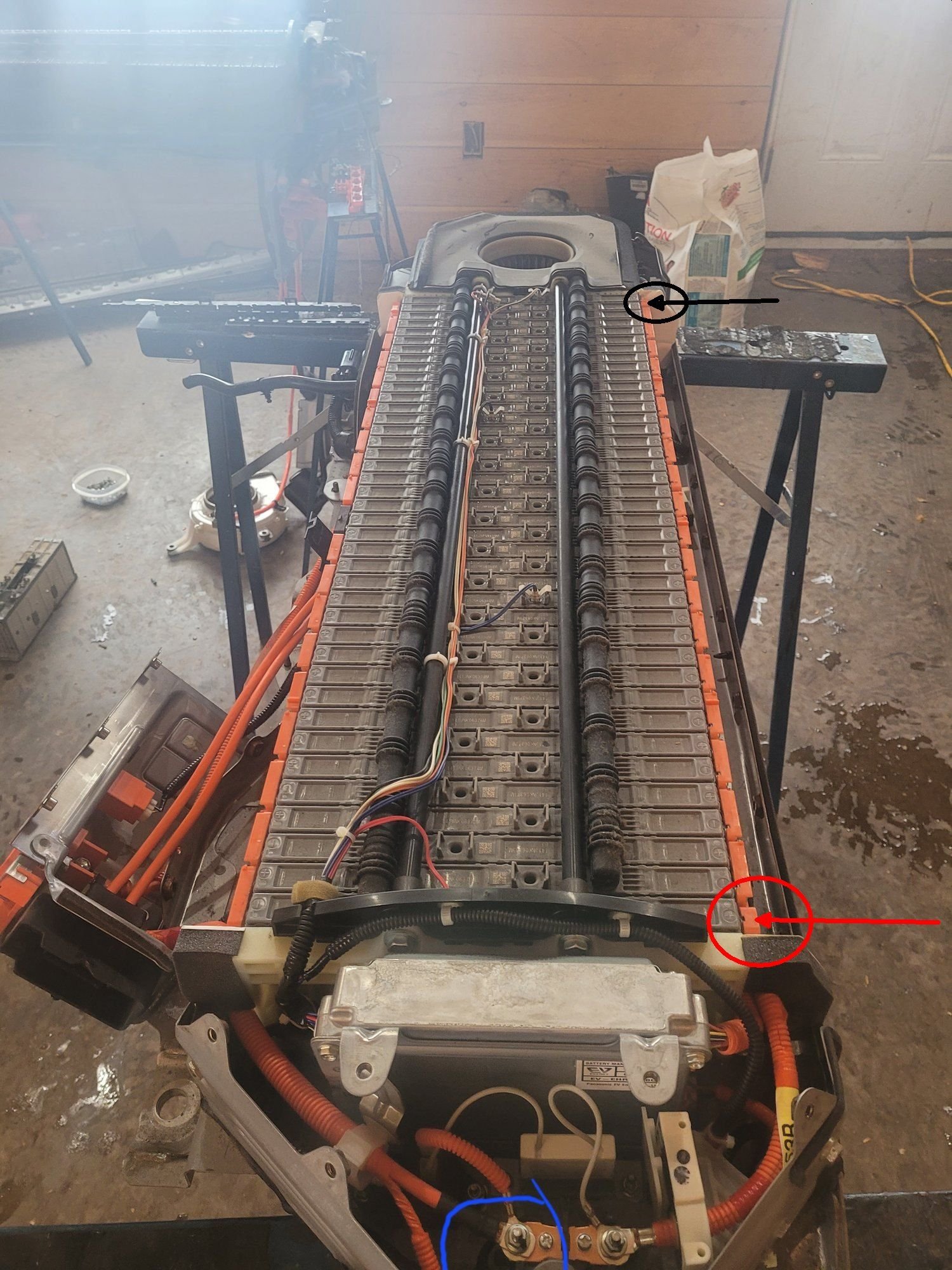

Blue circle is the isolated side of the relay. https://cimg2.ibsrv.net/gimg/www.greenhybrid.com-vbulletin/1500x2000/main_bbd3addfbbf45a84ff68ecc868d437c58c1187f4.jpg arrows pointing to terminals.

Thread Tools

Search this Thread

#21

02-15-2022, 09:30 AM

S Keith

Ridiculously Active Enthusiast

Join Date: Sep 2014

Location: Mesa, AZ

Posts: 5,032

Re: High Voltage Battery Replacement, Vehicle wont start.

Blue circle is the isolated side of the relay.

arrows pointing to terminals.

#22

02-15-2022, 09:39 AM

Parker

Enthusiast

Thread Starter

Join Date: Feb 2022

Posts: 13

Re: High Voltage Battery Replacement, Vehicle wont start.

Quote:

Originally Posted by S Keith

Blue circle is the isolated side of the relay.

arrows pointing to terminals.

my bad, i ment to circle the end of the relay that connected to the battery.

#23

02-15-2022, 11:16 AM

Parker

Enthusiast

Thread Starter

Join Date: Feb 2022

Posts: 13

Re: High Voltage Battery Replacement, Vehicle wont start.

Quote:

Originally Posted by S Keith

Blue circle is the isolated side of the relay.

arrows pointing to terminals.

no voltage from either terminal to the case, neither solenoid/relay is stuck closed.

#24

02-15-2022, 11:30 AM

S Keith

Ridiculously Active Enthusiast

Join Date: Sep 2014

Location: Mesa, AZ

Posts: 5,032

Re: High Voltage Battery Replacement, Vehicle wont start.

On a Toyota (this battery is made by Toyota), this would essentially eliminate the chance that the hybrid battery is the source of the HV isolation fault unless it's the battery computer itself.

#25

02-15-2022, 11:46 AM

Parker

Enthusiast

Thread Starter

Join Date: Feb 2022

Posts: 13

Re: High Voltage Battery Replacement, Vehicle wont start.

Quote:

Originally Posted by S Keith

On a Toyota (this battery is made by Toyota), this would essentially eliminate the chance that the hybrid battery is the source of the HV isolation fault unless it's the battery computer itself.

I've changed the computer as well, so I doubt that's the cause.
